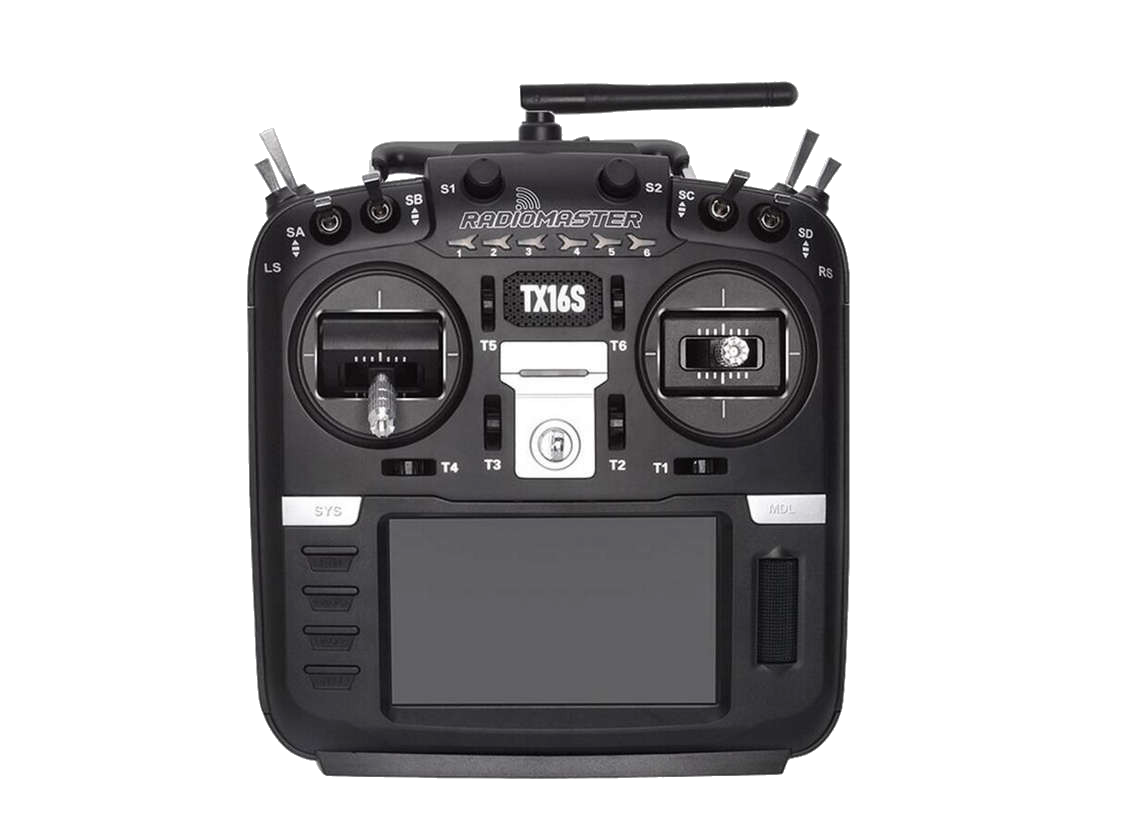

Radiomaster TX16/s

Radiomaster TX16/s with USB-c Setup:

*** Please ensure that your computer is fully up to date with the latest drivers including controller drivers.

*** Also please be sure to have the latest firmware installed on your controller.

This setup will be using a standard USB C cable. If you do not have one, there are many available online at numerous retailers.

First you will need to create a new model.

- Turn on your radio, and once on the Home screen, press/hold the MDL button for about 2 seconds. You will then see an option to "Create a New Model".
- Select to create the new model and proceed through the process, once created, we will need to ensure the Switches are enabled.
- To Enable the Switches, tap the MDL button, and then the Page> button until you arrive at the "Mixes or Mixer" screen.
- Scroll down to channel 5 and hit enter.

- Go down to “source” and hit enter, now flip the right rear switch once and hit enter.

- Hit exit twice and go to channel 6, hit enter and flip the left rear switch and hit enter.

- Now exit back to the main screen.

- With the radio on, plug in your USB cable to the computer and then the radio.

- Launch the game. Once the game has loaded it should show "Radiomaster" in the bottom right corner of your in game menu screen.

- Click on “settings” in the main menu>  “CONTROLLER SETUP”> "QUICK CALIBRATION". Go through the on screen instructions and you’re free to fly. Be sure to set your Trims and invert sticks if needed before hitting the SAVE button.

• Also ensure that the USB mode in the radio is set to "JOYSTICK" and not Storage.
  - Turn on the controller> Press the "SYS" button and click the PAGE> button until you get to "RADIO SETUP"> Click this and scroll down until you see "USB MODE" and change that to "JOYSTICK"



That's it! You should be all set to fly with your Radiomaster Transmitter! If you have any issues, please feel free to check out the Controller FAQ's, and if you need to, send us a Help Ticket so we can work with you one on one to solve your issue. Good luck, and Happy Flying!
